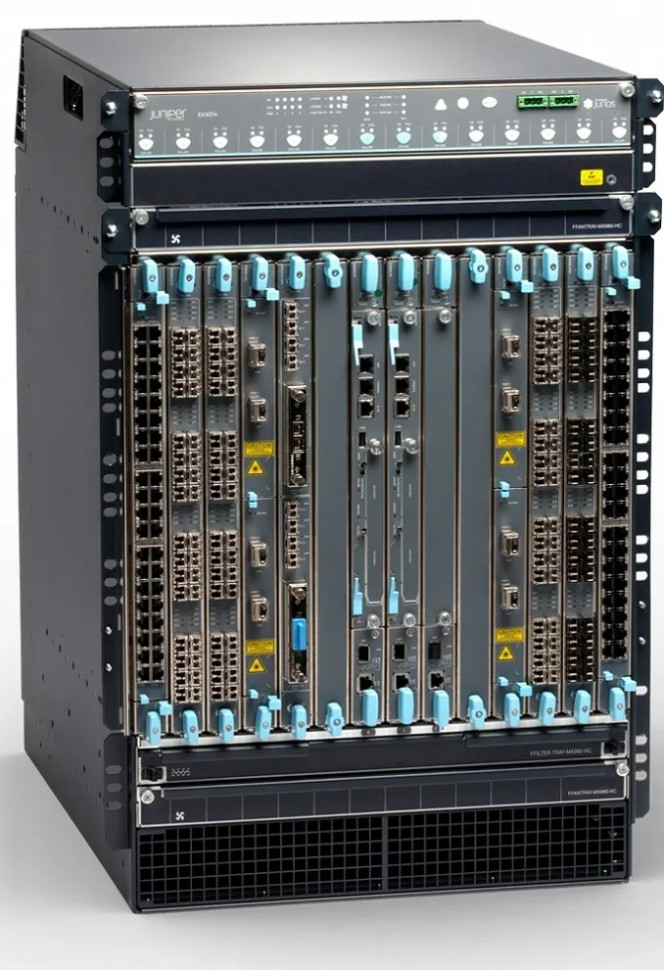

Коммутатор Juniper EX9214-RED3B-AC-T
Технические характеристики Juniper EX9214-RED3B-AC-T
Технические характеристики:
Base EX9204 system configuration: 4-slot chassis with passive midplane and 1x fan trays, 1x routing engines, 1x switch fabric modules, 2x 2520W AC PSUs, and all necessary blank panels
| Form Factor | EX9204: 4-slot modular chassis |
| Dimensions (W x H x D) | EX9204: |
| Backplane Speed | EX9204: Up to 1.6 Tbps per chassis |
| Data Rate | EX9200-40T: Up to 40 Gbps |
| Throughput | Up to 240 Gbps per slot (full duplex) on all chassis |
| 40GBASE QSFP + Port Densities | EX9204: 12 (EX9200-4QS line card) |
| 100GBASE CFP Port Densities | EX9204: 6 using EX9200-2C-8XS line card (future) |
| Resiliency | 4 power supply bays on each chassis for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; graceful routing engine switchover |
| Operating System | Junos |
| Traffic Monitoring | sFlow |
| QoS Queues / Port | 8 |
| MAC Addresses | 1,000,000 |
| Jumbo Frames | 9,192 Bytes |
| IPv4 Unicast / Multicast Routes | 256,000 |
| IPv6 Unicast / Multicast Routes | 256,000 |
| Number of VLANs | 32,000 |
| ARP Entries | 256,000 |
