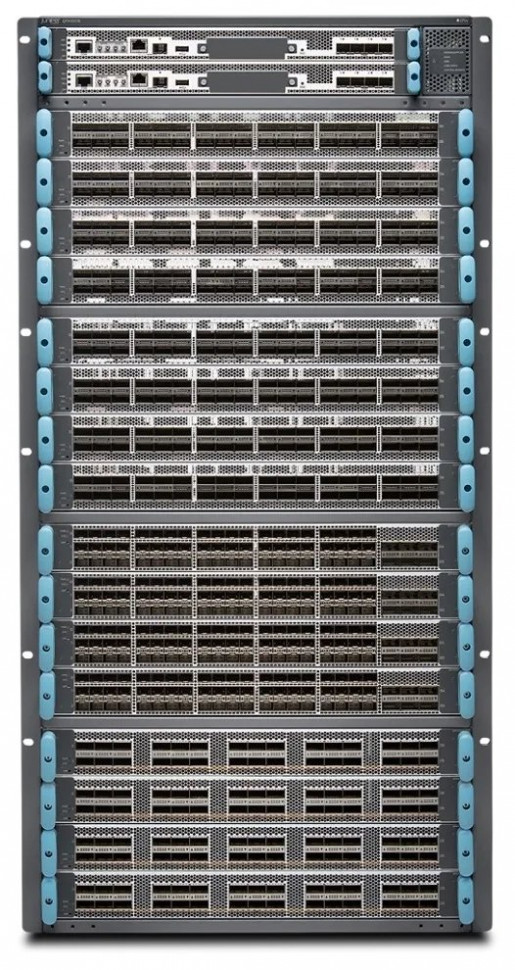

Коммутатор Juniper QFX10003-160C-DC

–

Коммутатор Juniper QFX10003-160C-DC

Артикул:QFX10003-160C-DC

О товаре

Технические характеристики Juniper QFX10003-160C-DC

Технические характеристики Juniper:

QFX10016 Redundant 16-slot chassis with 2 CBs, 10 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards

Dimensions (W x H x D)	QFX10002: 17.4 x 3.5 x 31 in (44.2 x 8.9 x 78.7 cm); 2U QFX10008: 17.4 x 22.55 x 32 in (44.2 x 57.3 x 81.3 cm); 13U QFX10016: 17.4 x 36.65 x 35 in (44.2 x 93 x 88.9 cm); 21U
Power Options	100 to 240 VAC (single phase) at 50/60 Hz or -40 to -72 VDC
System Throughput	QFX10002-36Q: 2.88 Tbps QFX10002-72Q: 5.76 Tbps QFX10008: 48 Tbps (6 Tbps/slot) QFX100016: 96 Tbps (6 Tbps/slot)
Form Factor	Fixed-configuration (QFX10002) and modular (QFX10008 and QFX10016) platforms
Data Rate (switching capacity)	QFX10002-72Q: Up to 2 Bpps QFX10002-36Q: Up to 1 Bpps QFX10008: Up to 16 Bpps QFX10016: Up to 32 Bpps
Port Densities	QFX10002-72Q: 288 10GbE, 72 40GbE or 24 100GbE QFX10002-36Q: 144 10GbE, 36 40GbE or 12 100GbE QFX10008: 1,152 10GbE, 288 40GbE or 240 100GbE QFX10016: 2,304 10GbE, 576 40GbE or 480 100GbE
Maximum 10GbE Density	QFX10002-72Q: 288 QFX10002-36Q: 144 QFX10008: 1152 QFX10016: 2304
Maximum 25GbE/50GbE Densities	N/A
Maximum 40GbE Density	QFX10002-72Q: 72 QFX10002-36Q: 36 QFX10008: 288 QFX10016: 576
Maximum 100GbE Density	QFX10002-72Q: 24 QFX10002-36Q: 12 QFX10008: 240 QFX10016: 480
Resiliency	QFX10002-36Q/-72Q: 2/4 hot-swappable AC/DC power supplies; 3 hot-swappable fan trays QFX10008: 6 hot-swappable AC/DC power supplies; 2 hot-swappable fan trays QFX10016: 10 hot-swappable AC/DC power supplies; 2 hot-swappable fan trays
Power Consumption	QFX10002-72Q: 1,350 W Typical / 1,650 W Maximum (AC) QFX10002-36Q: 800 W Typical / 1,000 W Maximum (AC) QFX10008: 9,463 W Typical / 13,747 W Maximum (AC) QFX10016: 19,899 W Typical / 28,677 W Maximum (AC)
Overlay Services	VMware NSX L2/3 gateway Juniper Contrail L2/3 gateway
Traffic Monitoring	Port-based LAG port VLAN-based ACL-based Mirror to local and remote destinations (L2 over VLAN and GRE)
QoS Queues / Port	Eight output queues per port
MAC Addresses	QFX10002-36Q: Up to 256,000 QFX10002-72Q: Up to 512,000 QFX10008 / QFX10016: Up to 1,000,000
Jumbo Frames	9,216 Bytes
IPv4 Hosts	Up to 2,000,000
IPv4 Unicast Routes	256,000
IPv4 Multicast Routes	Up to 128,000
IPv6 Hosts	Up to 2,000,000
IPv6 Unicast Routes	256,000
IPv6 Multicast Routes	Up to 128,000
Number of VLANs	16,000
ARP Entries	QFX10002-36Q: Up to 144,000 QFX10002-72Q: Up to 256,000 QFX10008 / QFX10016: Up to 256,000

Технические характеристики Juniper:

QFX10016 Redundant 16-slot chassis with 2 CBs, 10 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards

Dimensions (W x H x D)	QFX10002: 17.4 x 3.5 x 31 in (44.2 x 8.9 x 78.7 cm); 2U QFX10008: 17.4 x 22.55 x 32 in (44.2 x 57.3 x 81.3 cm); 13U QFX10016: 17.4 x 36.65 x 35 in (44.2 x 93 x 88.9 cm); 21U
Power Options	100 to 240 VAC (single phase) at 50/60 Hz or -40 to -72 VDC
System Throughput	QFX10002-36Q: 2.88 Tbps QFX10002-72Q: 5.76 Tbps QFX10008: 48 Tbps (6 Tbps/slot) QFX100016: 96 Tbps (6 Tbps/slot)
Form Factor	Fixed-configuration (QFX10002) and modular (QFX10008 and QFX10016) platforms
Data Rate (switching capacity)	QFX10002-72Q: Up to 2 Bpps QFX10002-36Q: Up to 1 Bpps QFX10008: Up to 16 Bpps QFX10016: Up to 32 Bpps
Port Densities	QFX10002-72Q: 288 10GbE, 72 40GbE or 24 100GbE QFX10002-36Q: 144 10GbE, 36 40GbE or 12 100GbE QFX10008: 1,152 10GbE, 288 40GbE or 240 100GbE QFX10016: 2,304 10GbE, 576 40GbE or 480 100GbE
Maximum 10GbE Density	QFX10002-72Q: 288 QFX10002-36Q: 144 QFX10008: 1152 QFX10016: 2304
Maximum 25GbE/50GbE Densities	N/A
Maximum 40GbE Density	QFX10002-72Q: 72 QFX10002-36Q: 36 QFX10008: 288 QFX10016: 576
Maximum 100GbE Density	QFX10002-72Q: 24 QFX10002-36Q: 12 QFX10008: 240 QFX10016: 480
Resiliency	QFX10002-36Q/-72Q: 2/4 hot-swappable AC/DC power supplies; 3 hot-swappable fan trays QFX10008: 6 hot-swappable AC/DC power supplies; 2 hot-swappable fan trays QFX10016: 10 hot-swappable AC/DC power supplies; 2 hot-swappable fan trays
Power Consumption	QFX10002-72Q: 1,350 W Typical / 1,650 W Maximum (AC) QFX10002-36Q: 800 W Typical / 1,000 W Maximum (AC) QFX10008: 9,463 W Typical / 13,747 W Maximum (AC) QFX10016: 19,899 W Typical / 28,677 W Maximum (AC)
Overlay Services	VMware NSX L2/3 gateway Juniper Contrail L2/3 gateway
Traffic Monitoring	Port-based LAG port VLAN-based ACL-based Mirror to local and remote destinations (L2 over VLAN and GRE)
QoS Queues / Port	Eight output queues per port
MAC Addresses	QFX10002-36Q: Up to 256,000 QFX10002-72Q: Up to 512,000 QFX10008 / QFX10016: Up to 1,000,000
Jumbo Frames	9,216 Bytes
IPv4 Hosts	Up to 2,000,000
IPv4 Unicast Routes	256,000
IPv4 Multicast Routes	Up to 128,000
IPv6 Hosts	Up to 2,000,000
IPv6 Unicast Routes	256,000
IPv6 Multicast Routes	Up to 128,000
Number of VLANs	16,000
ARP Entries	QFX10002-36Q: Up to 144,000 QFX10002-72Q: Up to 256,000 QFX10008 / QFX10016: Up to 256,000

Технические характеристики Juniper QFX10003-160C-DC Технические характеристики Juniper: QFX10016 Redundant 16-slot chassis with 2 CBs, 10 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards Dimensions (W x H x D) QFX10002: 17.4 x 3.5 x...

Бренд

Juniper
