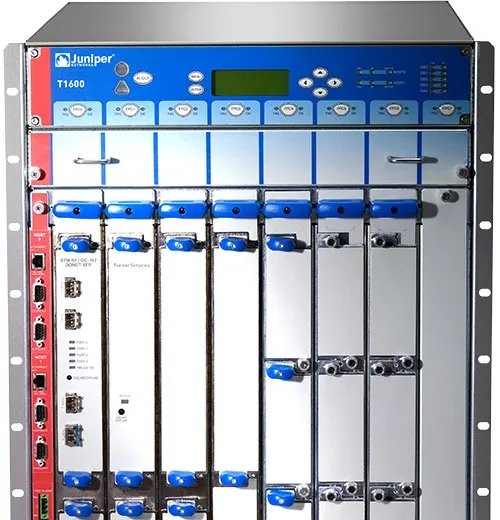

Маршрутизатор Juniper T1600BASE

General Information

Manufacturer:

Juniper

Product ID:

T1600BASE

Product Description:

T1600 line card chassis 8 slots with cooling system, Backplane, 1 Routing engine, 1 Control Board, 1 Sonet clock Generator, 1 CIP and 2 power entry modules.

Product Type:

Router Chassis

Marketing Information

Also at 19 inches wide and a half-rack in height, the multichassis-capable Juniper Networks T1600 Core Router addresses the need for highly scalable, high-performance core routing at a fraction of the size of competitive offerings. The T1600 delivers up to 1.6 Tbps of capacity (100 Gbps/slot) with the ability to forward up to 1.92 billion pps.

Juniper provides unique capabilities for upgrading T Series routers to accommodate the changing requirements of service providers. For example, the T640 can grow in-service into a T1600 by only replacing the power module and switch fabric. Following such an upgrade, the T1600 provides more than double the capacity of T640, while only using fractionally more power.

I/O Expansions

Number of Total Expansion Slots:

17

Expansion Slot Type:

Switch Fabric Card

Switch Control Board

Routing Engine

Flexible PIC Concentrator

Management & Protocols

Security Features:

• DoS
• DDoS
• Deep Packet Classification

Physical Characteristics

Form Factor:

Rack-mountable

Height:

37.5"

Width:

17.4"

Depth:

31"

Weight (Approximate):

606.01 lb
